ADD VALUE K-series Coriolis mass flowmeters have unmatched high accuracy, wide turndown range, and reliable measurement stability and repeatability, broadest range of communication and connectivity options and peripheral products meet all field and cost requirements.

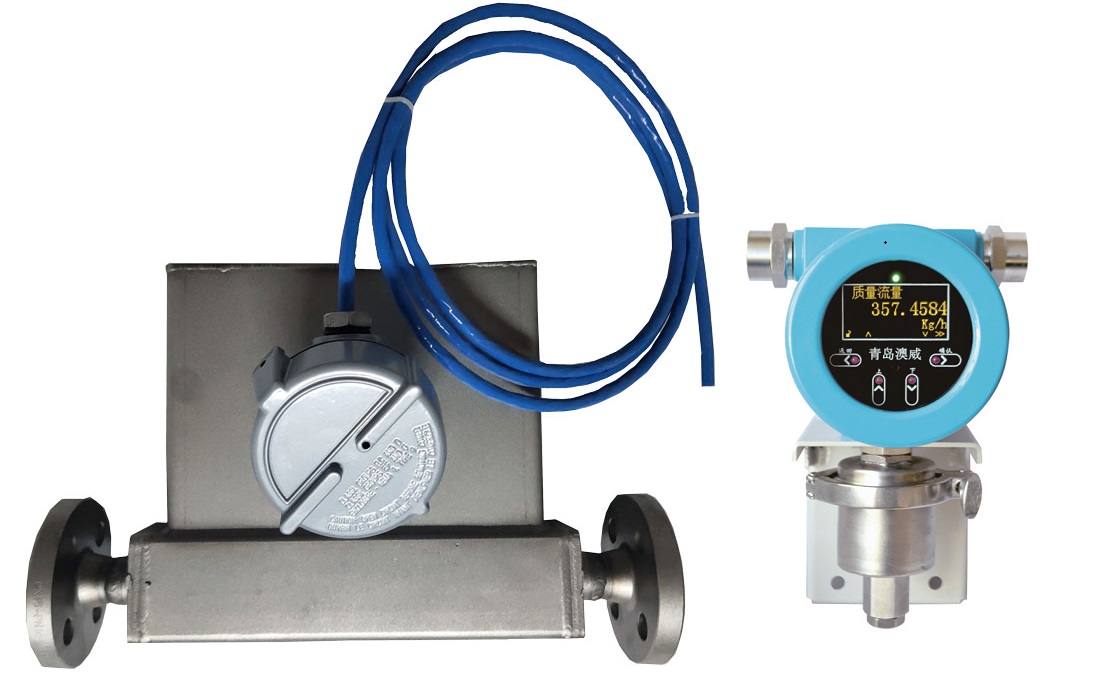

| Name of Flowmeter | KMF03
Coriolis Mass Flow Meters |
| Flange Compatibility | DN10/DN15/DN20/DN25 |
| Flow Range | 0.009 ~ 0.36 t/h |
| Grade of Accuracy | ±0.1%; ±0.15%; ±0.2% |
| Turndown | 20:1 |
| Zero Stability | 0.075 kg/h |
| Density Range | 0.2~2.0 kg/cm³ |
| Density Error | ± 0.0005g/cm³ |
| Temperature Range | -240℃ ~ +350℃ |
| Temperature Error | ± 0.2℃ |
| Explosion-proof Grade | Sensor: Ex ib IIC T1- T6 Gb |
| Transmitter: Ex d [ib] IIC T6 Gb |
| Protection Class | IP66/IP67 |
| IP66/IP67 |
