Product Detail

Model: KMF25

Product Detail
Name KMF25 Coriolis Mass Flow Meters Model KMF25

Introduction

ADD VALUE K-series Coriolis mass flowmeters have unmatched high accuracy, wide turndown range, and reliable measurement stability and repeatability, broadest range of communication and connectivity options and peripheral products meet all field and cost requirements.



Specifications


Name of FlowmeterKMF25 Coriolis Mass Flow Meters
Flange CompatibilityDN25/DN32
Flow Range1 ~ 20 t/h
Grade of Accuracy±0.1%; ±0.15%; ±0.2%
Turndown20:1
Zero Stability0.76 kg/h
Density Range0.2~2.0 kg/cm³
Density Error± 0.0005g/cm³
Temperature Range-240℃ ~ +350℃
Temperature Error± 0.2℃
Explosion-proof GradeSensor: Ex ib IIC T1- T6 Gb
Transmitter: Ex d [ib] IIC T6 Gb
Protection ClassIP66/IP67
IP66/IP67

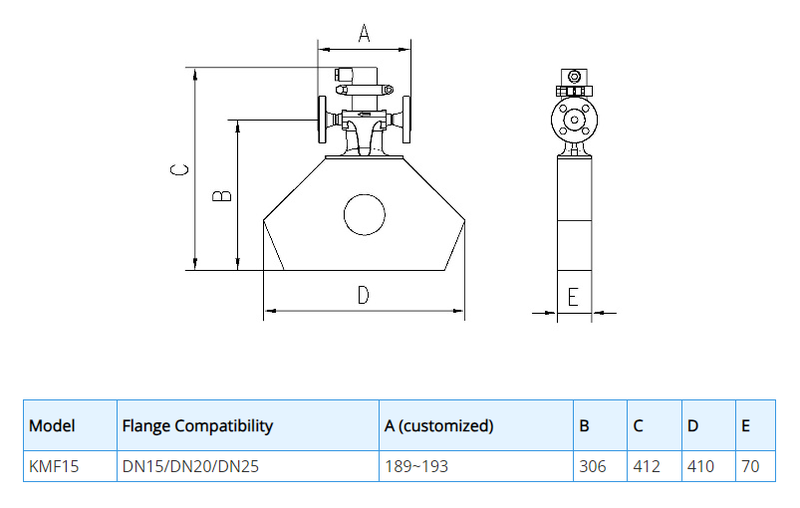

Outline Dimension
